18650 Battery Set – Li-Ion Cell 3500mAh + Battery Holder Bundle

18650 Battery Set – Cell and holder from a single source

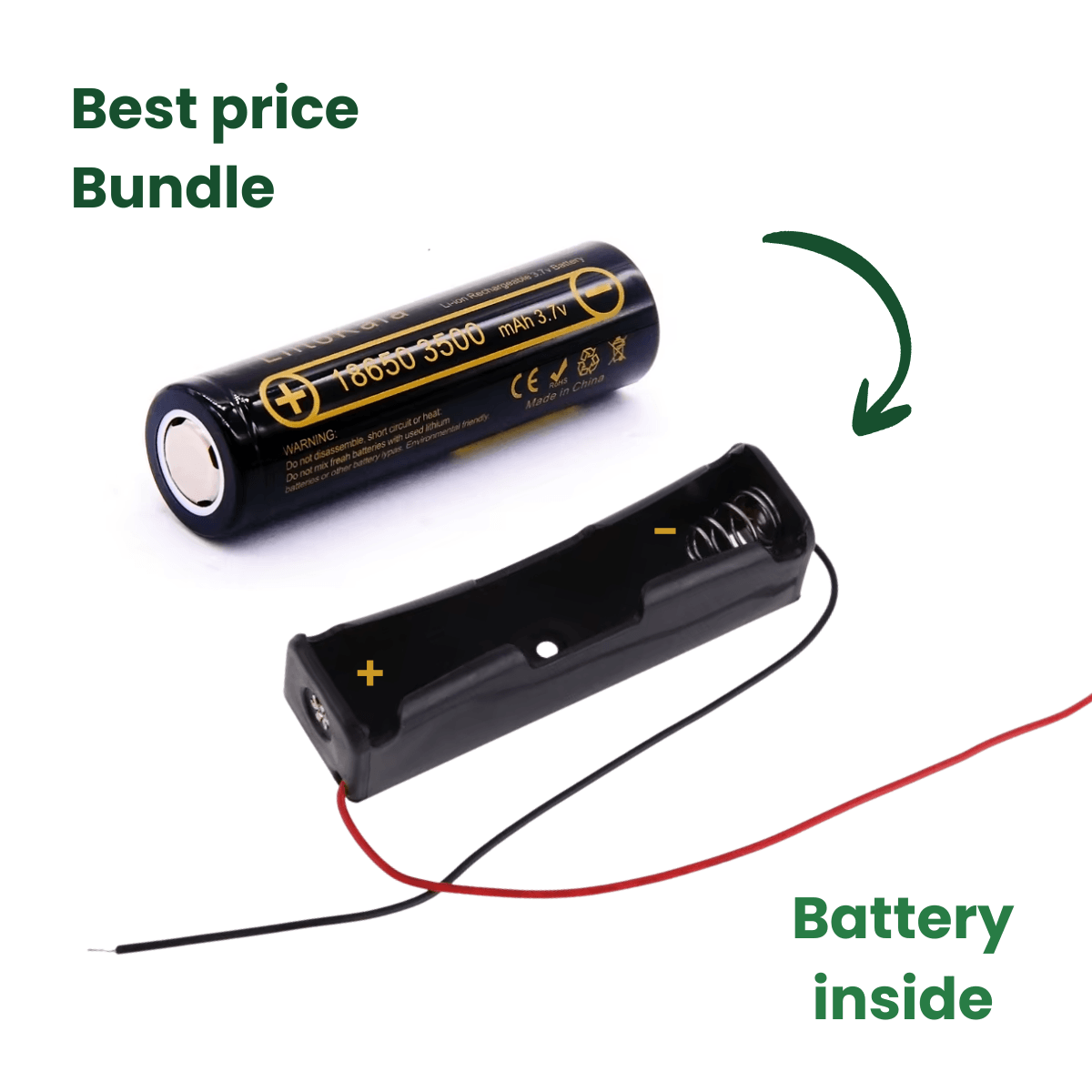

This 18650 Battery Set combines a high-performance 18650 Li-Ion cell with 3500mAh capacity and a matching battery holder with a pre-fitted connection cable. Instead of ordering the battery and holder separately, you get both perfectly matched components in one package – convenient for anyone who wants to quickly and easily put together a ready-to-use 18650 power supply for their project.

Who Is This Product For?

The 18650 Battery Set is aimed at makers, electronics hobbyists, and developers who want to flexibly integrate a single 18650 cell into their own circuits – for example, when building DIY power banks, prototyping battery-powered devices, or test setups with a multimeter. This set is also a practical solution in a single order for anyone who doesn’t want to search for the battery and holder separately.

Description

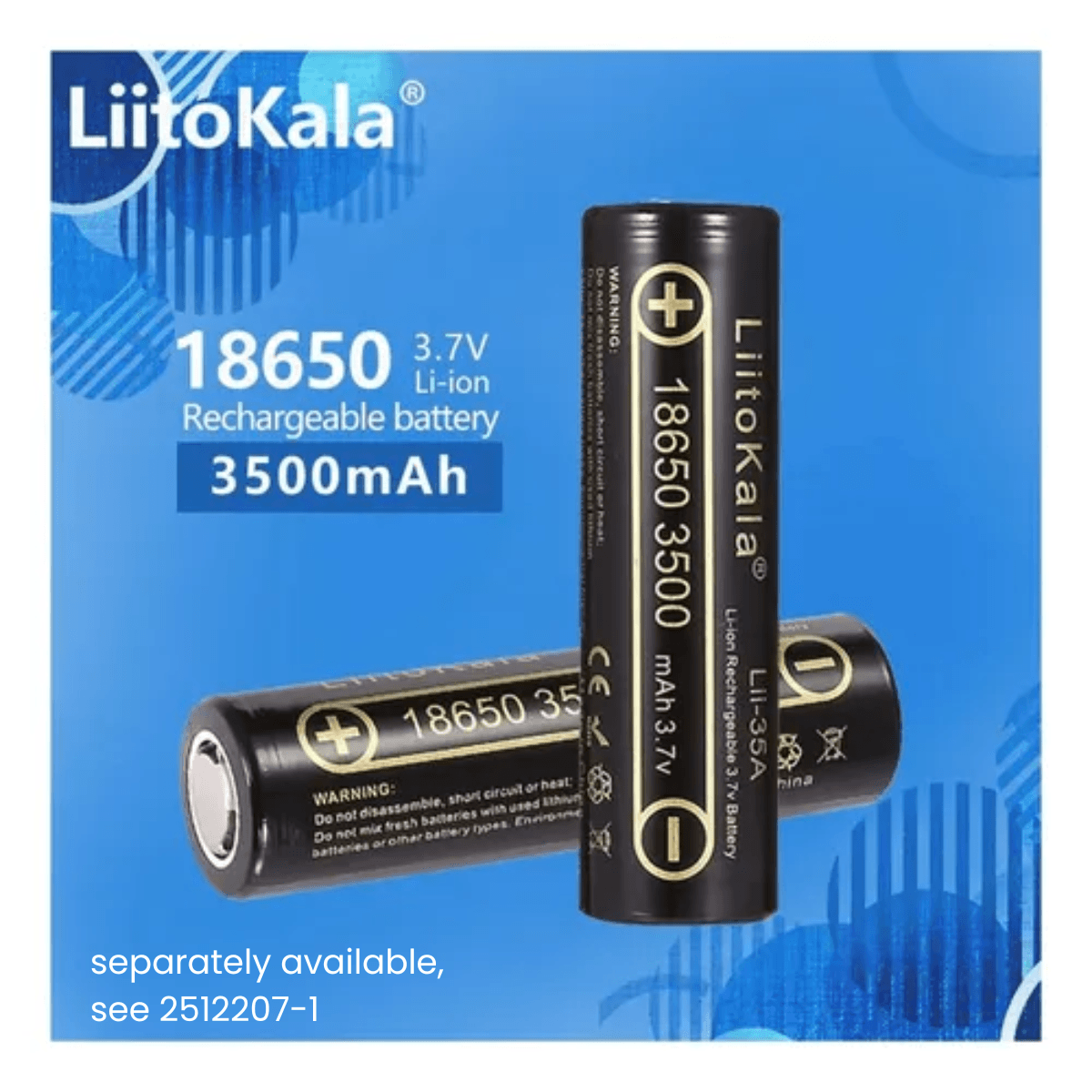

At the heart of the set is the 18650 Li-Ion cell with a capacity of up to 3500 mAh and a stable nominal voltage of 3.7V. Thanks to its low internal resistance, the cell is also suitable for demanding applications with a maximum discharge current of up to 10A. With up to 500 charge cycles, the battery offers a long service life in continuous use.

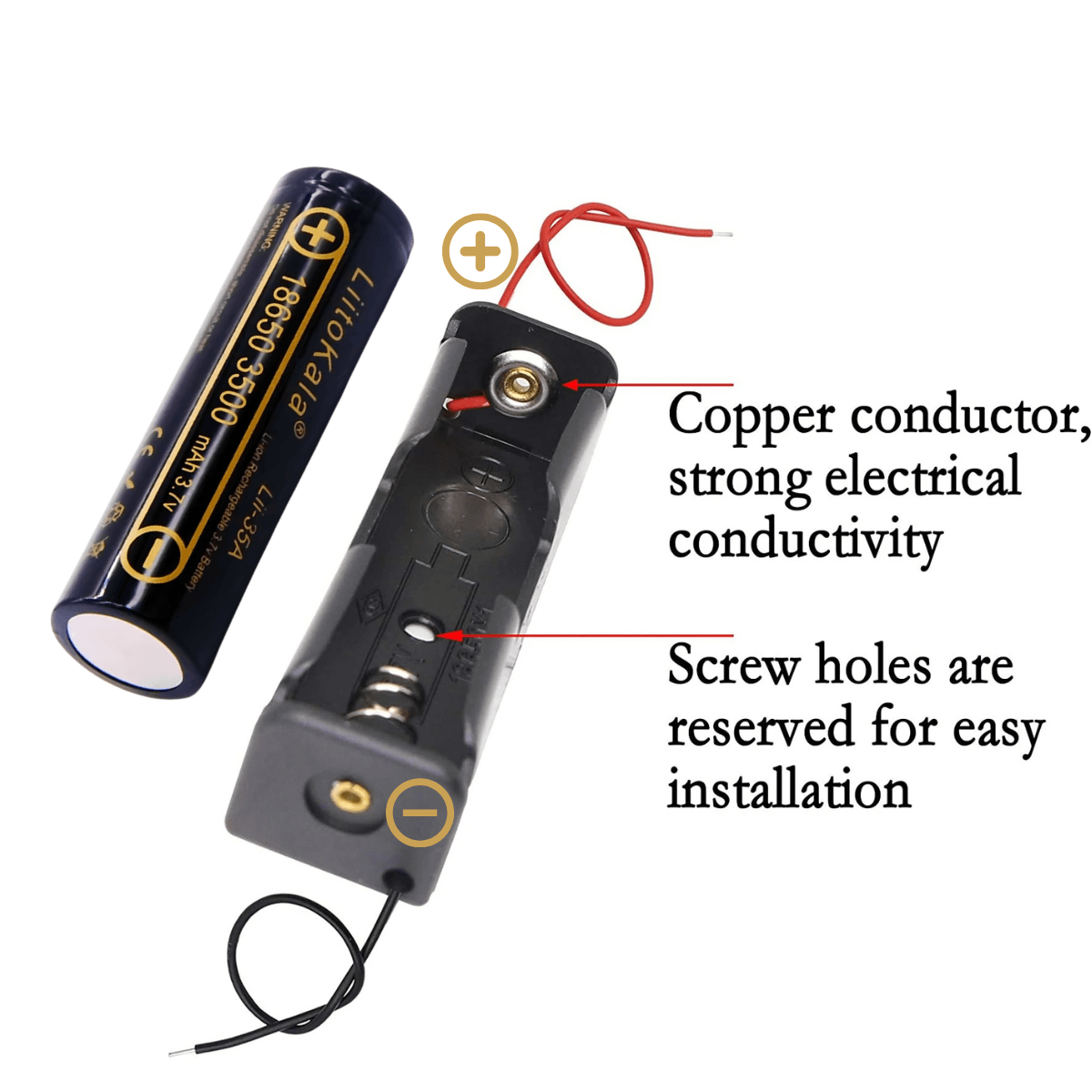

The included battery holder is made of durable PP plastic and securely holds the 18650 cell (flat-top, max. 67mm). A nickel-plated steel spring contact ensures a lasting hold and compensates for minor length tolerances between different cells, while the copper positive contact ensures low contact resistance.

For electrical connection, the holder comes with two 150mm long, factory pre-tinned wires (red = positive, black = negative), made from 1007# 24AWG stranded wire. Since the wire ends are already tinned, the set can be soldered or crimped into connectors directly without further preparation.

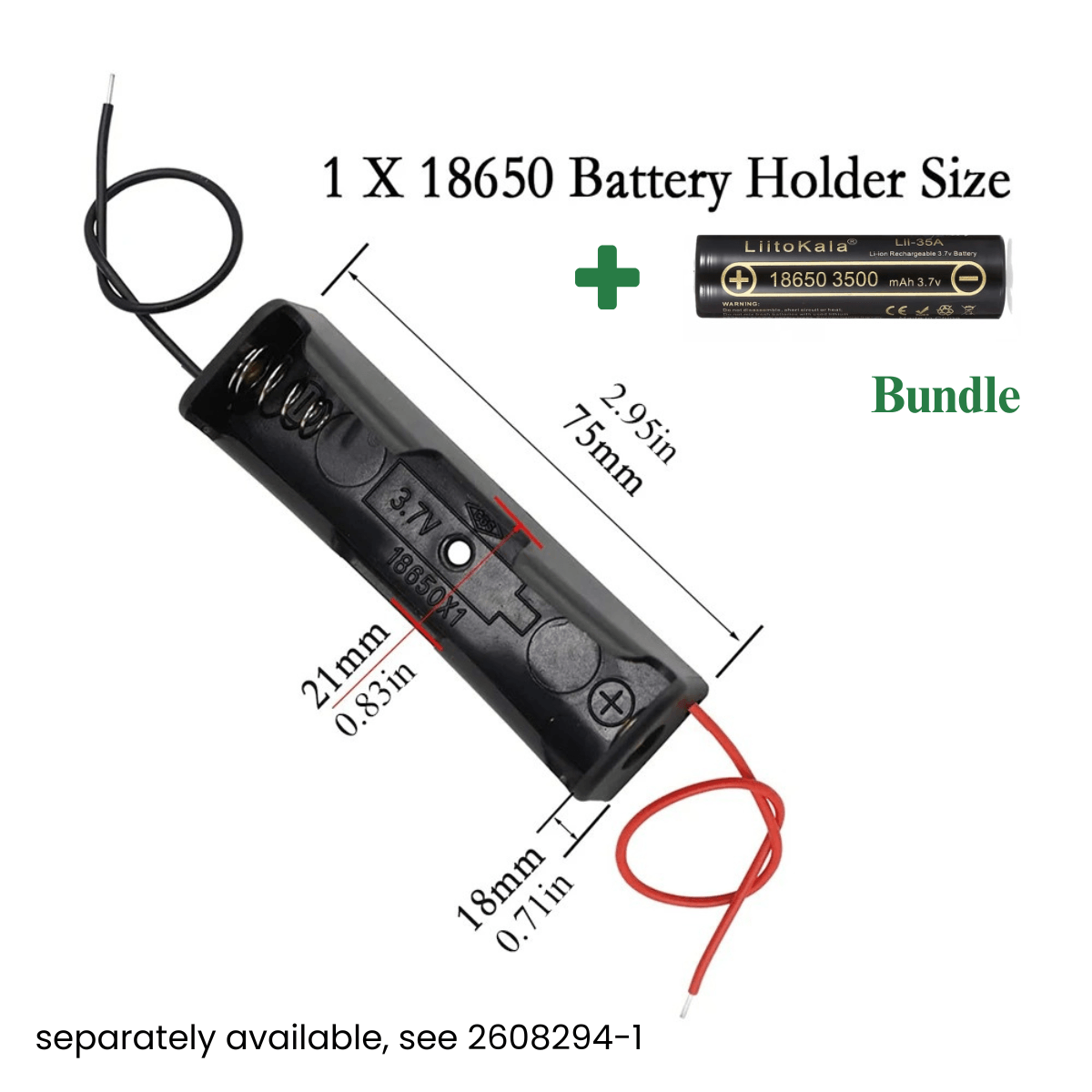

The bottom of the holder’s housing also has a mounting hole, allowing the component to be securely screwed down if needed – handy for installation in enclosures or on PCBs. The compact dimensions of 75mm x 21mm x 18mm ensure the holder also fits in tight enclosures.

Zusammen bilden Akku und Halter im 18650 Akku Set eine sofort nutzbare Einheit: Zelle einsetzen, Kabel verlöten oder in einen Steckverbinder eincrimpen – fertig. Weitere Informationen zu Lithium-Ionen-Akkus finden Sie hier: Lithium-Ionen-Akku Erklärung.

Typical Use Cases

• DIY Power Banks and Portable Charging Solutions
• Test Setups for Voltage and Capacity Measurement
• Battery-Powered Microcontroller and Sensor Projects
• Flashlights and LED lights
• Repair and Expansion of Existing Battery Packs

Technical Specifications

Compatibility

• 18650 Li-Ion Cells with Flat Positive Terminal (Flat-Top)
• Also suitable for 17500 and 18500 Li-ion cells (shorter design)
• Usable in Series and Parallel Configurations of Multiple Holders
• Suitable for DIY Battery Packs, Power Banks, and Test Circuits

Connection / Integration

Insert the cell with correct polarity into the holder and either solder the two pre-fitted 150mm wires (red = positive, black = negative) directly or crimp them into a connector. This way, the 18650 Battery Set can be integrated into charging circuits, power bank builds, or test setups within just a few minutes.

👉 Discover Matching Products

Package Contents

• 1 × 18650 Li-Ion battery 3500mAh
• 1 × 18650 battery holder with 150mm connection cable
• Charger not included

Important Notes

• Only use with suitable chargers
• Do not short-circuit or damage
• Do not overcharge or deeply discharge
• Check polarity (red = positive, black = negative) before soldering
• Keep out of reach of children

FAQ

Compatible Accessories

• USB-C Charging Modules for 18650 Batteries
• Battery Protection Boards with Overcharge Protection
• Power bank enclosures for 18650 cells
• Heat Shrink Tubing Set for Cable Insulation
